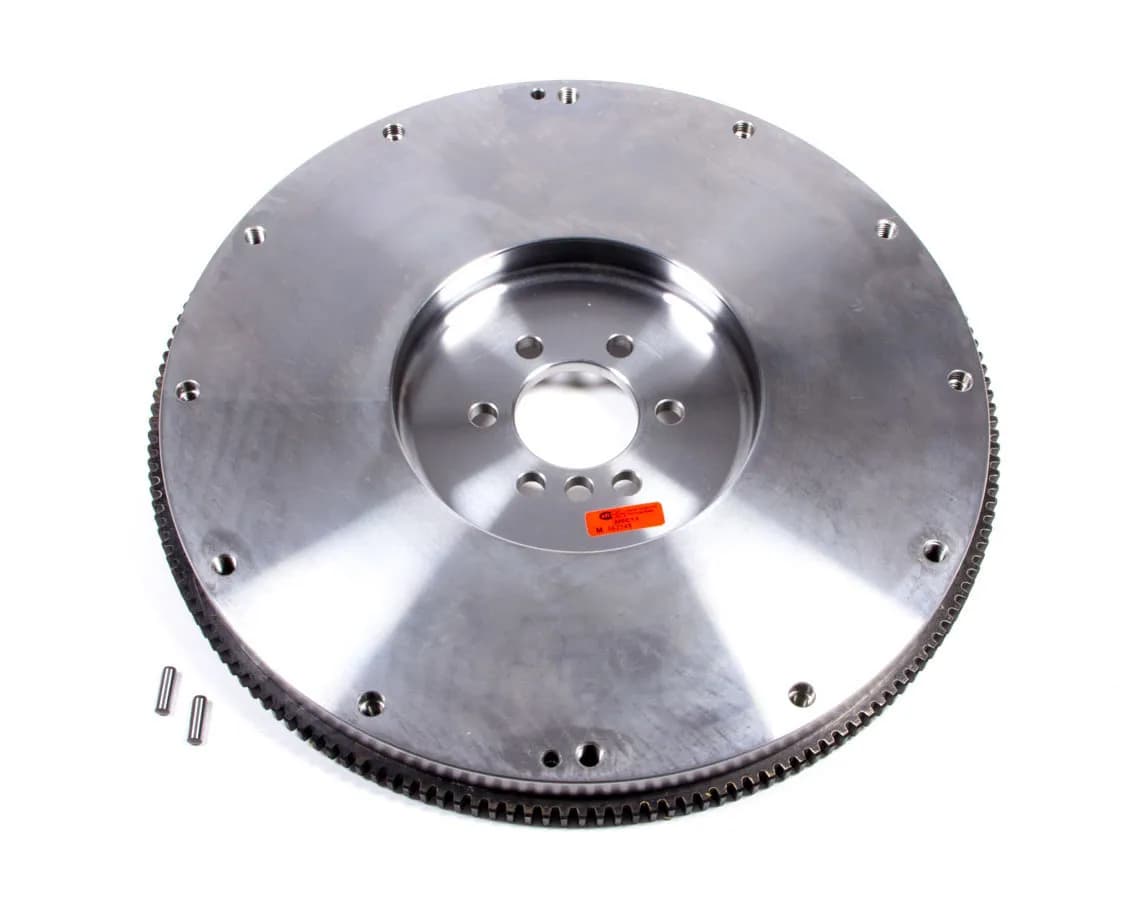

McLeod 460535 Flywheel: Steel: Chevrolet: 1997-13 LS-X: 6 Bolt: 168T: 28 Lbs: +.400 to Face
1 / 2
McLeod 460535 Flywheel: Steel: Chevrolet: 1997-13 LS-X: 6 Bolt: 168T: 28 Lbs: +.400 to Face
MPN: 460535UPC: 00887753011718In Stock
Almost gone! Only 1 remaining $429.00$557.70SAVE 23%
Starting at $36/mowithaffirm
Flywheel - 168 Tooth - 30 lbs - 0.400 in Thicker - Steel - Internal Balance - GM LS-Series - Each
Shipping: $11.00· Usually ships in 1-3 business days Flywheel - 168 Tooth - 30 lbs - 0.400 in Thicker
- Steel
- Internal Balance
- GM LS-Series
- Each
Earn 429 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 30.3 lbs |
| Length | 15.6 in |
| Width | 14.8 in |
| Height | 2.1 in |
| Part Number | 460535 |
| UPC | 00887753011718 |
| Country of Origin | US |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Disc Diameter (in.) | 11.000/12.000 in. |
| Emissions | CARB Eligible |
| Engine | 1997-2013 LS1/LS2/LS3/LS6/LS7 |
| Engine Balance | Internal |
| Flywheel Material | Billet steel |
| Height | 2.1 |
| Installation Instructions | https://sdda.semadata.org/Standard/Mc Leod/BoltTorqueSpecs_McLeod(11_2024).pdf |
| Item Quantity/Size | 1 EA |
| Length | 14.5 |
| Make | Chevrolet |
| Marine Use | No |
| Notes | .400In. of material added to face to put clutch assembly in same position as SBC/BBC. |
| Pressure Plate Style | Borg & |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Quantity | Sold individually. |
| Rear Main Seal Style | 1-piece |
| Replaceable Friction Surface | No |
| Ring Gear Tooth Quantity | 168-tooth |
