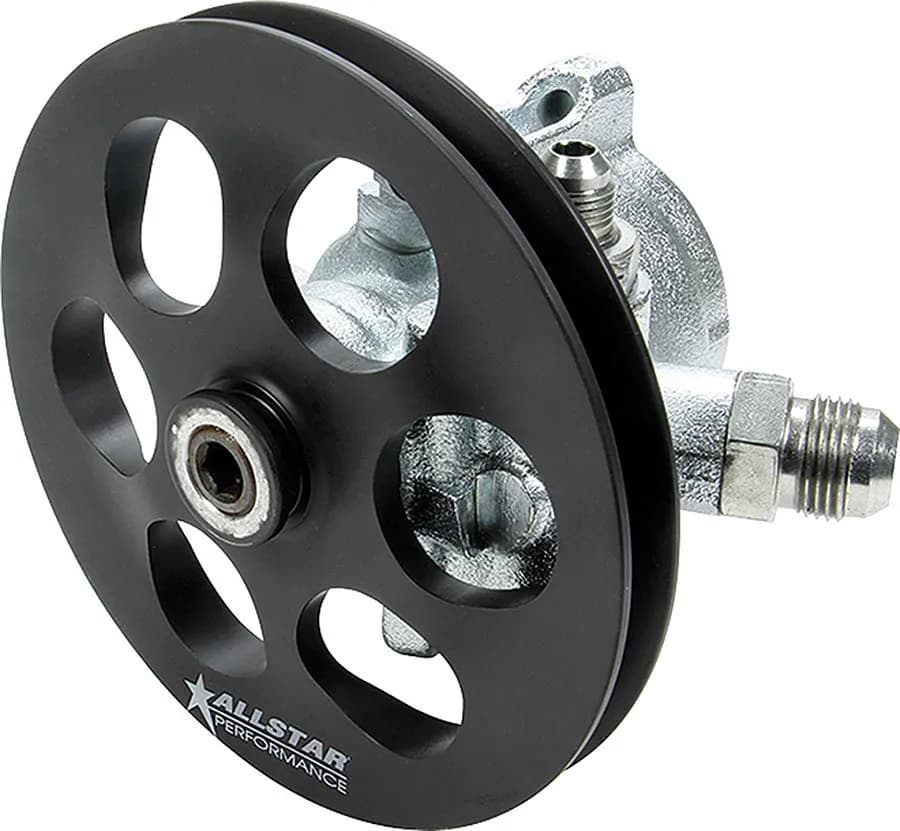

Power Steering Pump - GM Type 2 - 3 gpm - 1300 psi - V-Belt Pulley - Steel - Zinc - Each
Earn 249 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free
Technical Specifications
Weight
5.57 lbs
Length
8.7 in
Width
7.5 in
Height
4.8 in
Part Number
48250
UPC
848238025019
Weight
5.57
Length
8.7
Width
7.5
Height
4.8
Product Notes
Pump has a 1300PSI rating and starts working at 1500 RPM pump speed.3 gallons per minute. Max RPM of pump 6500 RPM. Pulley Diameter is 6. Pump has a dimension of 3-1/4 from the mounting surface to the center of the pulley. See mounting brackets for bracket dimensions. Press on pulley shaft size .665 w/ 3/8-16 Int. Threads Inlet fitting size is -10AN Replacement ALL99287 Pressure fitting size is -6AN Replacement ALL99288 Use JRPPS-5106-B-5.000 for 6-rib serpentine belt pulley.
