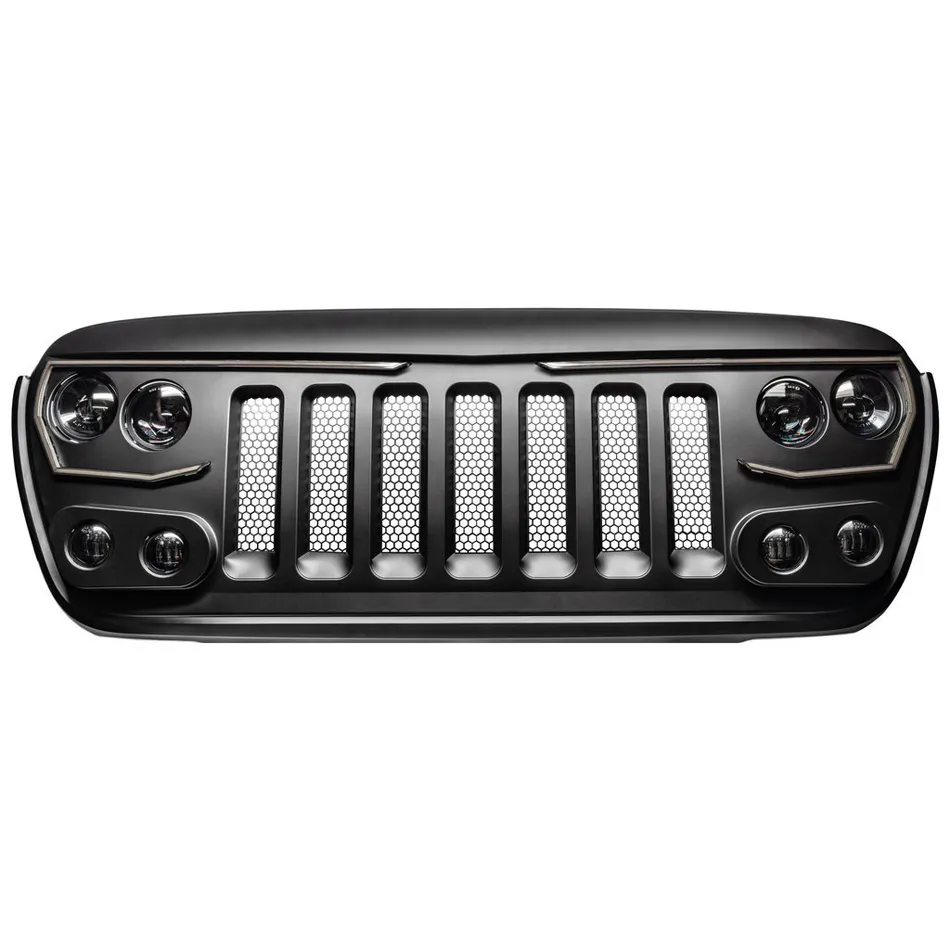

Product Description Features What's Included Installation ORACLE Part # 5837-PRO U.S. Patent No. D842175 The ORACLE Lighting Vector™ PRO Series II Grill System for the Jeep Wrangler JL/Gladiator JT is all new for 2024! VECTOR™ is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. The new PRO-SERIES II revision of the Vector Grill includes major improvements to the quality and durability of the LED DRL Modules. These modules are now robotically sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersions. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance. Both the Grill and DRL molds were revised adding clips to the DRL housings along with the designated area on the grill housing. This is designed to provide a more secure seal into the housing which in turn will help prevent any separation between the DRL and the housing itself. This separation was where moisture was able to enter the DRLs resulting in LED failure in older models.

More information:
[Click Here] Each LED emitter can be independently adjusted in order to put a focused beam of light on the road without blinding oncoming traffic, this is especially important for lifted Wranglers/Gladiators. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light coverage by utilizing precise LED optics for advanced light control. The Vector™ Series Grill features an impressive 5,600 Combined Lumen (Raw Lumens) Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The headlight wiring connection is "Plug and Play" thanks to the included harness adapter which plugs into the factory socket. The DRL module is wired into the vehicle’s fuse box with the included fused wiring adapter. Installation takes 1-2 hours for most beginners and requires only basic tools for DIY installation. Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light (DRL) which increases driver safety by making the Wrangler more visible to other drivers on the road. This DRL also features a unique "startup sequence" Dynamic LED display. The components of the Vector Grill were CAD-developed to ensure that the fit and finish of this product matches factory quality and fitment. The ORACLE Vector™ Series Grill was designed in the USA and has been granted USPTO design patents and has other patents pending in the US and countries abroad. ORACLE Lighting Vector Grill Specifications:
- Fitment: 2018-25 Jeep Wrangler JL
- Fitment: 2020-25 Jeep Gladiator
- Construction: Polycarbonate
- Durability: Impact Rated Shell
- Installation: Factory Mounts
- Fully Equipped w/ LED Components
- Not compatible with Trail Cam - 2 Year Warranty ORACLE LED Low Beam LED Emitter Specifications:
• Total 4,000 Lumens Light Output
• 24 Phillips ZES™ 5W LEDs
• Horizontal and Vertical Adjust-ability
• Advanced Optics Design for Optimal Visibility
• Precision Beam ""no glare” output design ORACLE LED Driving/High Beam LED Emitter Specifications:
• Total 1,600 Lumens Light Output
• 6 Phillips ZES™ 5W LEDs
• Horizontal and Vertical Adjust-ability
• Advanced Optics Design for Optimal Visibility
• Precision Beam ""no glare” output design ORACLE Dynamic LED DRL Specifications:
• Over 200 Individual High Output LEDs
• Eye-Catching Daytime Running Light
• Dynamic LED Startup Sequence Package Contents: (1) ORACLE Lighting Vector Series Grill (4) Adjustable LED Low Beam Emitters (2) Adjustable LED Driving Beam Emitters (2) LED High Beam (Bright Beam) Emitters (2) Dynamic Daytime Running Lights (2) Removable Mounting Brackets (2) Plug & Play Headlight Harnesses (1) DRL Cable Harness W/ Add-A-Fuse Circuit (6) Metal Grill Retailer Installation Clips (1) Installation Guide and DIY Video (8) Headlight Spacers (2) Screws (1) Weatherproof stripping Still have a question about installing your grill? Check out the FAQ section HERE
