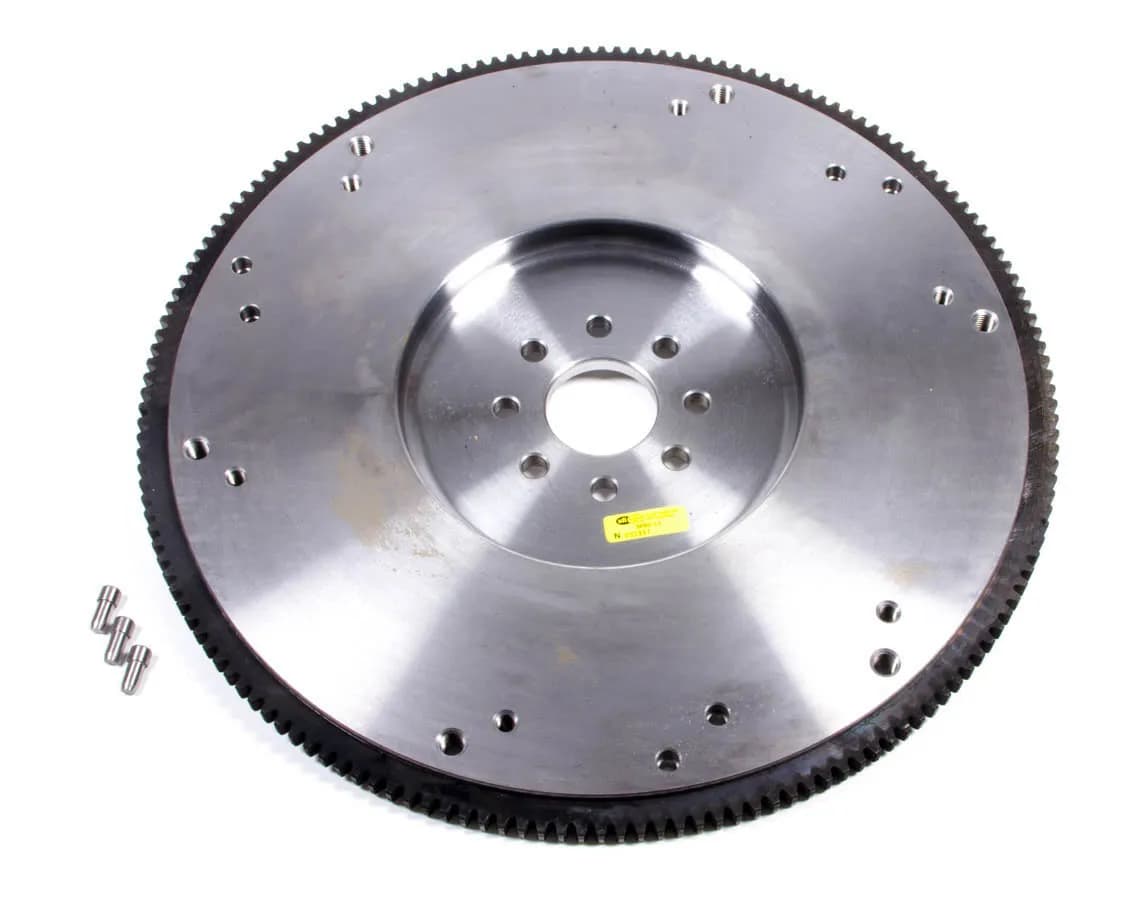

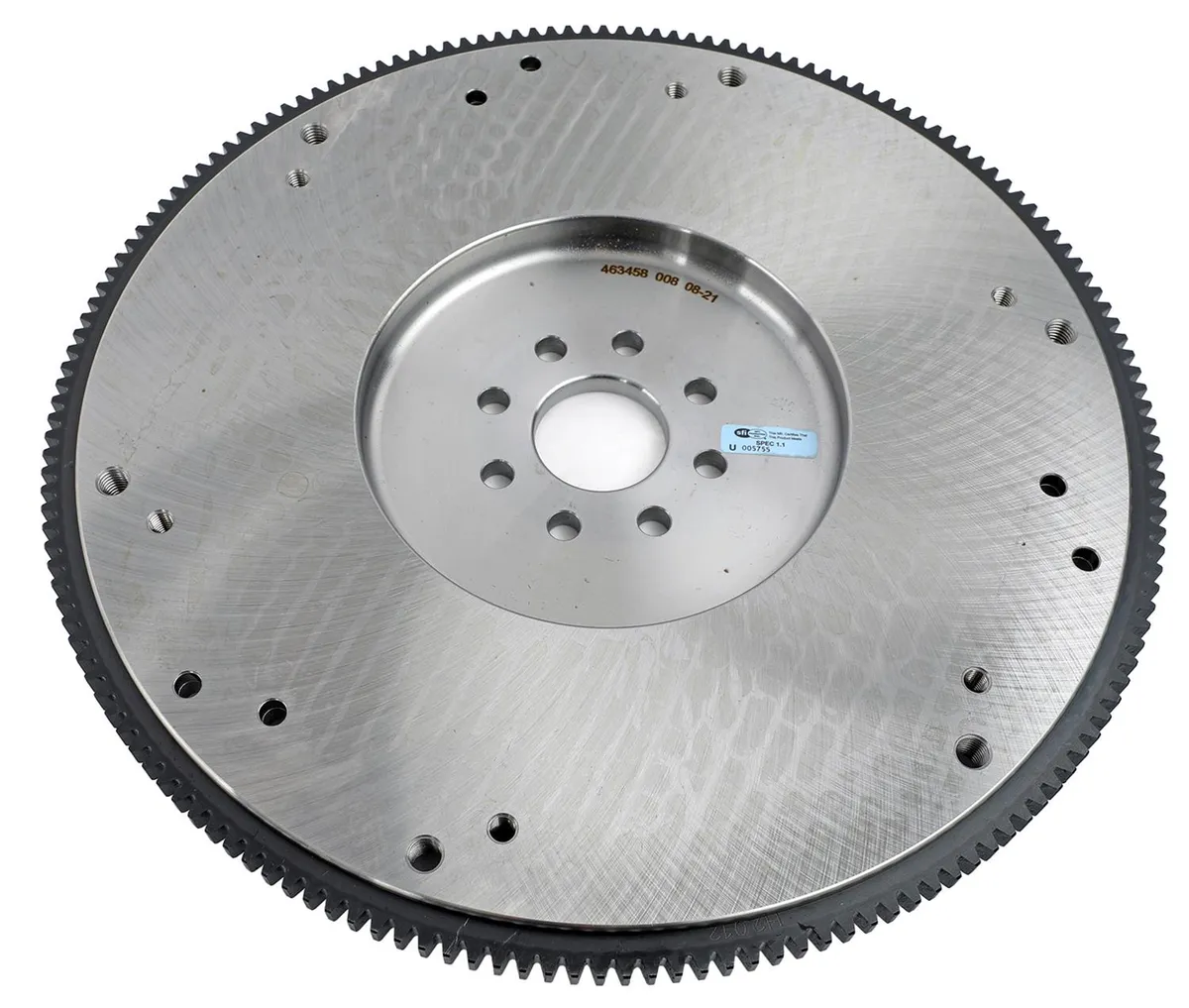

McLeod 463458 Flywheel: Steel: Ford: 1996-04 4.6L: 2011-17 3.7L,5.0L: 8 Bolt: 164T: 20 Lbs
1 / 2
McLeod 463458 Flywheel: Steel: Ford: 1996-04 4.6L: 2011-17 3.7L,5.0L: 8 Bolt: 164T: 20 Lbs
MPN: 463458UPC: 00887753011893In Stock
Almost gone! Only 2 remaining $329.00$427.70SAVE 23%
Starting at $28/mowithaffirm
Flywheel - 164 Tooth - 22 lbs - Steel - Internal Balance - 8-Bolt Crank - Ford Modular - Each
Shipping: $11.00· Usually ships in 1-3 business days Flywheel - 164 Tooth - 22 lbs
- Steel
- Internal Balance - 8-Bolt Crank
- Ford Modular
- Each
Earn 329 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 21.375 lbs |
| Length | 15.65 in |
| Width | 14.9 in |
| Height | 2.15 in |
| Part Number | 463458 |
| UPC | 00887753011893 |
| Country of Origin | US |
| Crankshaft to Flywheel Bolt Quantity | 8-bolt |
| Disc Diameter (in.) | 10.500/11.000 in. |
| Emissions | CARB Eligible |
| Engine | 1996-2017 4.6L/5.0L/5.4L 2011-2017 3.7L 8 bolt crank |
| Engine Balance | Internal |
| Flywheel Material | Billet steel |
| Height | 2.15 |
| Installation Instructions | https://sdda.semadata.org/Standard/Mc Leod/BoltTorqueSpecs_McLeod(11_2024).pdf |
| Item Quantity/Size | 1 EA |
| Length | 15.65 |
| Make | Ford |
| Marine Use | No |
| Notes | This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern. |
| Pressure Plate Style | Diaphragm |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Quantity | Sold individually. |
| Replaceable Friction Surface | No |
| Ring Gear Tooth Quantity | 164-tooth |
| SFI 1.1 Approved | Yes |
