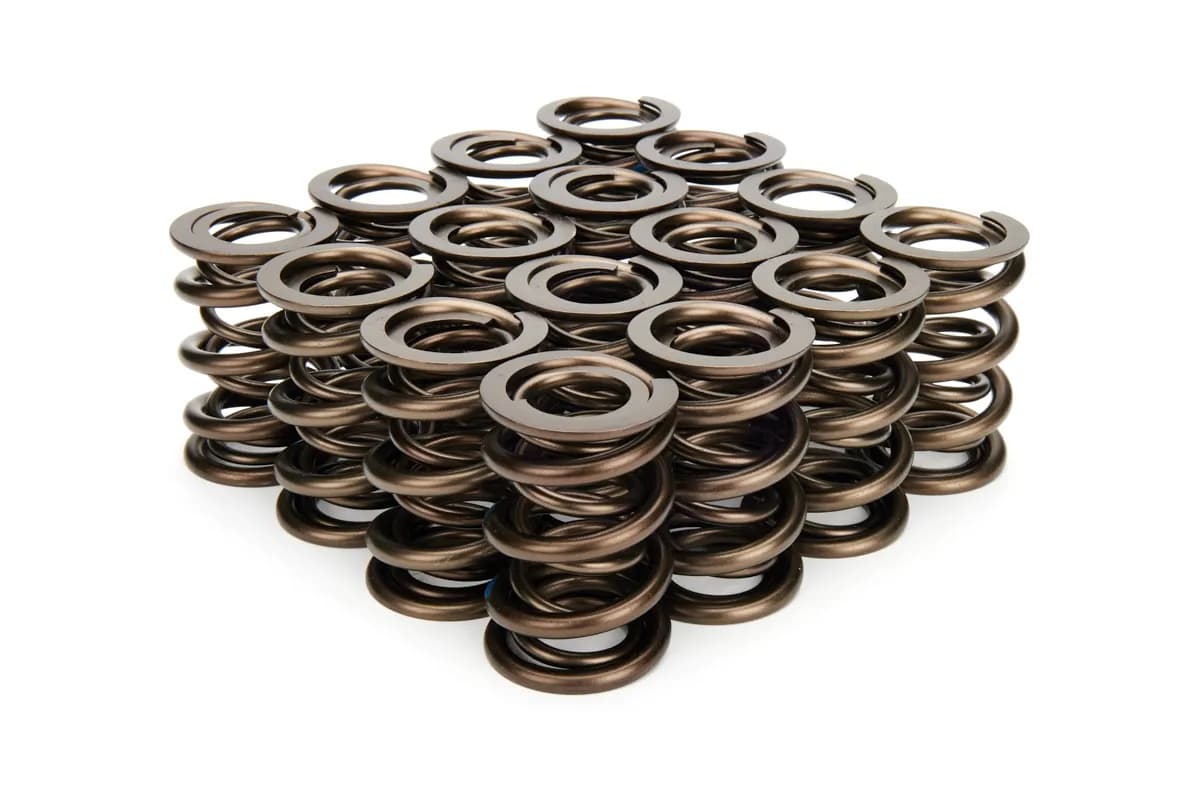

Manley 221424-16 Manley Valve Spring, SPRING-1.640 DOUBLE
1 / 3
Manley 221424-16 Manley Valve Spring, SPRING-1.640 DOUBLE
MPN: 221424-16UPC: 00807298023601In Stock — Ready to Ship
$372.89$430.89SAVE 13%
Starting at $32/mowithaffirm
Valve Spring - NexTek - Dual Spring - 647 lb/in Spring Rate - 1.070 in Coil Bind - 1.640 in OD - Set of 16
Shipping: $11.00· Usually ships in 1-3 business days Valve Spring
- NexTek
- Dual Spring - 647 lb/in Spring Rate - 1.070 in Coil Bind - 1.640 in OD
- Set of 16
Earn 372 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 5.7 lbs |
| Length | 15.375 in |
| Width | 3.625 in |
| Height | 3.625 in |
| Part Number | 221424-16 |
| UPC | 00807298023601 |
| Average Gram Weight | 149 GR |
| Country of Origin | BR |
| Emissions | Racing or Pre-Emissions Use Only |
| Engine Type | ICE |
| Height | 3.625 |
| Industry | Automotive |
| Installed Pressure and Height | 250 @ 2.000 PPI |
| Item Quantity/Size | 1 EA |
| Length | 15.375 |
| Open Pressure and Height | 800 @ 1.150 PPI |
| Out of Stock Message | Call for Availability |
| Product Market | Domestic |
| Product Type | Engine Valve Spring |
| Prop 65 | Prop 65 Warning Label.JPG |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Valve Lift - Maximum | 0.880 IN |
| Valve Spring Coil Bind Height | 1.070 IN |
| Valve Spring Inner Diameter | 0.860 |
| Valve Spring Material | Chrome Silicon |
| Valve Spring Outer Diameter | 1.640 IN |
