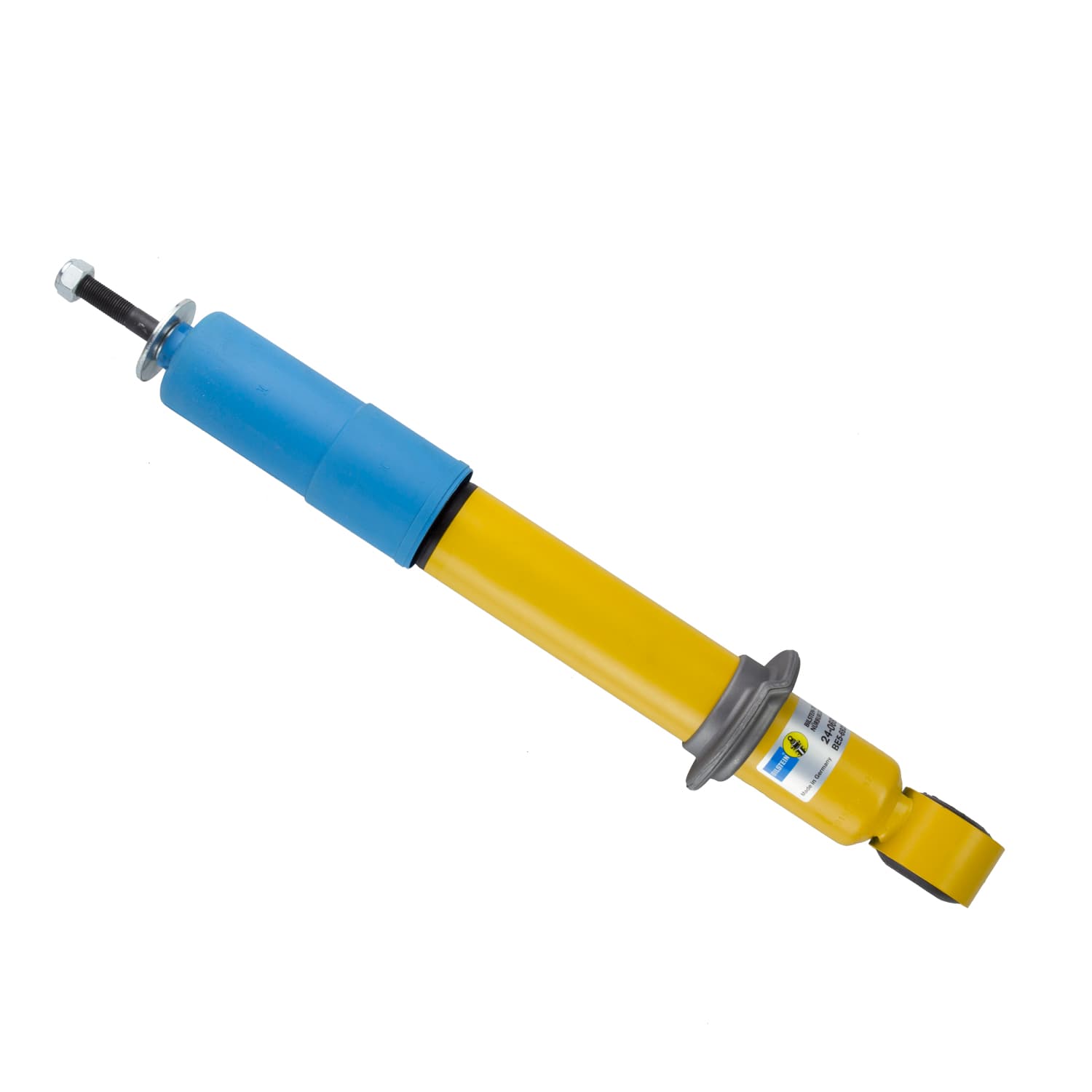

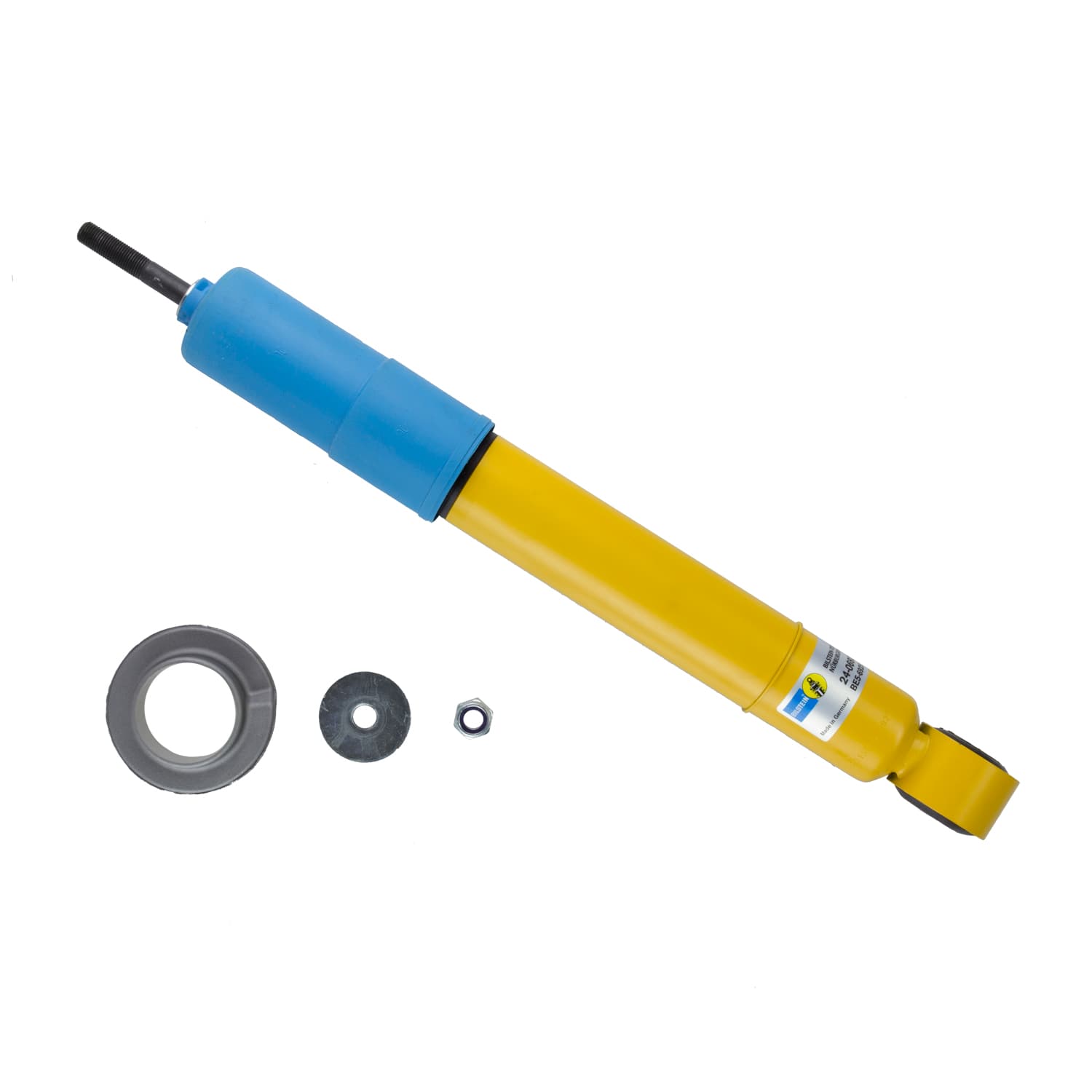

Bilstein 24-069250 B8 Performance Plus - Suspension Shock Absorber
1 / 2
Bilstein 24-069250 B8 Performance Plus - Suspension Shock Absorber
MPN: 24-069250UPC: 00651860645353Coming Soon
https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/warranty_all_v4.2.pdf Installation GuideComing Soon
This product is not yet available for purchase. Stay tuned for updates!
REAR SHOCK ABSORBER B8 PERFORMANCE PLUS TOYOTA COROLLA 20082002
REAR SHOCK ABSORBER B8 PERFORMANCE PLUS TOYOTA COROLLA 20082002
Earn 134 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 5.0500 lbs |
| Length | 26.8000 in |
| Width | 2.9500 in |
| Height | 2.9500 in |
| Part Number | 24-069250 |
| UPC | 00651860645353 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Boot Included | Blue Straight |
| Collapsed Length (IN) | 14.53 |
| Collapsed Length (mm) | 369.0 |
| Compressed Length | 369.0 MM |
| Country of Origin | DE |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 453.0 MM |
| Extended Length (IN) | 17.83 |
| Extended Length (mm) | 453.0 |
| Finish | Yellow Paint |
| Grade Type | Performance |
| Height | 2.9500 |
| Height (in) | 2.95 |
| Installation Instructions | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/E4-WM5-Y065A00_1.pdf |
| Internal Design | Monotube |
| Item Quantity/Size | 1.0 EA |
Installation Overview
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
