Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L
Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L
MPN: KDF148174UPC: 00788442030709In Stock
Almost gone! Only 3 remaining $1,102.95$1,434.15SAVE 23%
Starting at $92/mowithaffirm

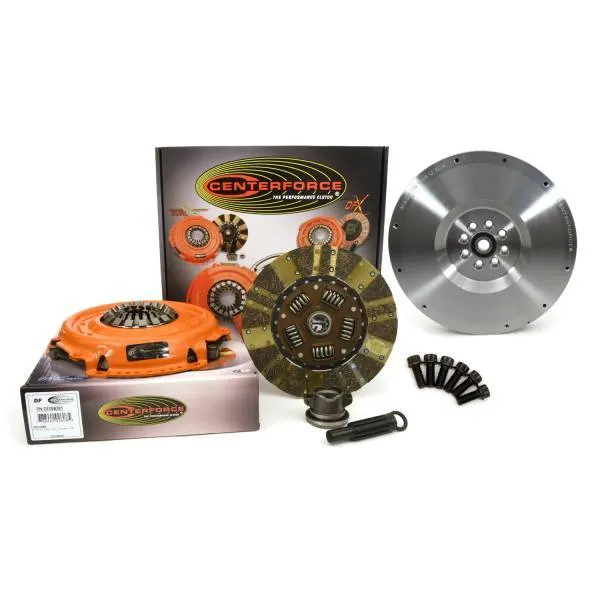

Clutch Kit - Dual Friction - Single Disc - 10.4 in Diameter - 1-1/8 in x 10 Spline - Sprung Hub - Steel Flywheel - Organic / Carbon - Jeep Wrangler JK 2007-11 - Kit
Freight Shipping — quoted at checkout Clutch Kit
- Dual Friction
- Single Disc - 10.4 in Diameter - 1-1/8 in x 10 Spline
- Sprung Hub
- Steel Flywheel
- Organic / Carbon
- Jeep Wrangler JK 2007-11
- Kit
Earn 1102 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 80.455 lbs |
| Length | 17.75 in |
| Width | 18 in |
| Height | 5.75 in |
| Part Number | KDF148174 |
| UPC | 00788442030709 |
| Additional Handling Charge | Yes |
| Alignment Tool Included | Yes |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Bolt Type | Shouldered |
| Clutch Disc Diameter | 264.2 MM |
| Counterweight Assist | YES |
| Country of Origin | US |
| Crankshaft Bolt Hole Quantity | 8 |
| Disc Material | Organic/Carbon composite |
| Disc Type | Segmented face |
| Disc Type Sprung Solid | Sprung |
| Dowel Pin Quantity Cover To Flywheel | 3 |
| Emissions | CARB Eligible |
| Flywheel Counter Balance Weight | 0 IN/OZ |
| Flywheel Crank Flange Register | 1.889 IN |
| Height | 5.75 |
| Height (in) | 5 |
| Input Shaft Diameter | 1-1/8 IN |
| Input Spline Quantity | 10 |
| Installation Instructions | https://www.centerforce.com/files/media_downloads/Instructions/KDF148174.PDF |
