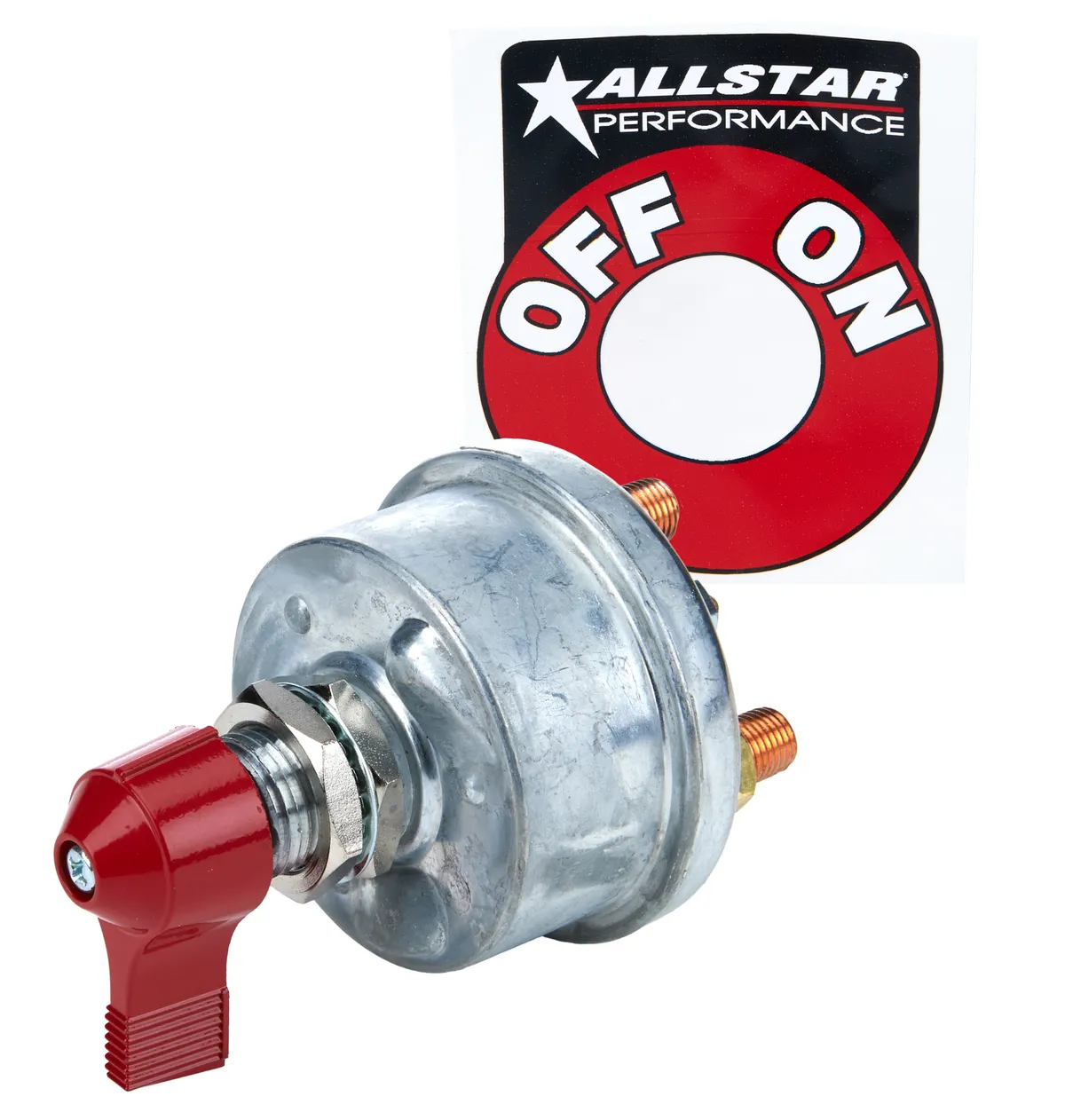

Battery Disconnect - Rotary Switch - Panel Mount - 175 Amps - 12V - Alternator Posts - Each
Earn 49 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free
Technical Specifications
Weight
0.961 lbs
Length
9.05 in
Width
5.5 in
Height
2.8 in
Part Number
80157
UPC
848238040777
Weight
0.961
Length
9.05
Width
5.5
Height
2.8
Product Notes
The large 3/8-24 studs have a 1000 amp intermittent rating (15 seconds) and 175 amp continuous rating. The smaller 10-32 studs have a 20 amp continuous rating. This unit basically acts as two separate disconnects in one one for the larger terminals and another for the smaller terminals. ALL99045 Replacement Decal ALL99317 Replacement Handle
