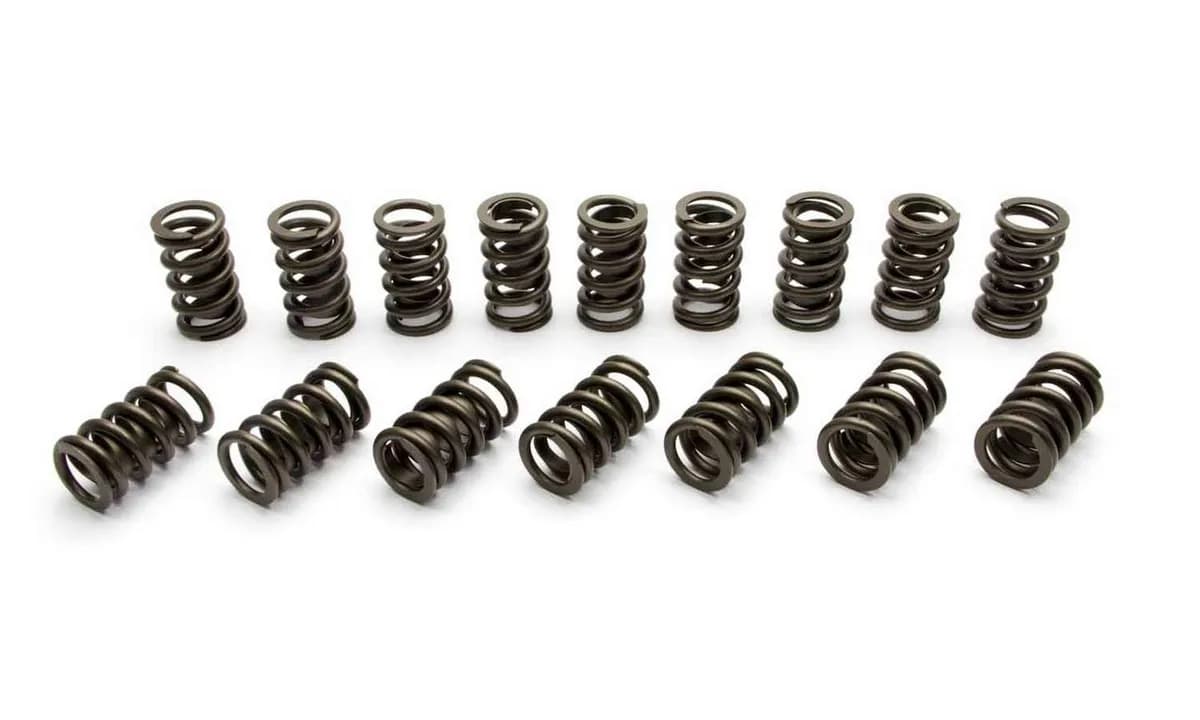

Manley 22431-16 Manley Valve Spring, Spring-1.550 Chr Sil
1 / 3
Manley 22431-16 Manley Valve Spring, Spring-1.550 Chr Sil
MPN: 22431-16UPC: 00807298018805In Stock — Ready to Ship
$215.56$249.09SAVE 13%
Starting at $18/mowithaffirm
Valve Spring - Professional - Dual Spring / Damper - 507 lb/in Spring Rate - 1.190 in Coil Bind - 1.550 in OD - Set of 16
Shipping: $11.00· Usually ships in 1-3 business days Valve Spring
- Professional
- Dual Spring / Damper - 507 lb/in Spring Rate - 1.190 in Coil Bind - 1.550 in OD
- Set of 16
Earn 215 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 6 lbs |
| Length | 15.375 in |
| Width | 3.625 in |
| Height | 3.625 in |
| Part Number | 22431-16 |
| UPC | 00807298018805 |
| Average Gram Weight | 159 GR |
| Country of Origin | BR |
| Emissions | Racing or Pre-Emissions Use Only |
| Engine Type | ICE |
| Height | 3.625 |
| Industry | Automotive |
| Inner Diameter of Inner Valve Spring | 0.725 IN |
| Inner Diameter of Outer Valve Spring | 1.115 IN |
| Installed Pressure and Height | 225 @ 1.950 PPI |
| Item Quantity/Size | 1 EA |
| Length | 15.375 |
| Open Pressure and Height | 580 @ 1.250 PPI |
| Out of Stock Message | Call for Availability |
| Outer Diameter of Outer Valve Spring | 1.550 IN |
| Product Market | Domestic |
| Product Type | Engine Valve Spring |
| Prop 65 | Prop 65 Warning Label.JPG |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Valve Spring Coil Bind Height | 1.190 IN |
| Valve Spring Material | Chrome Silicon |
